Uncoiling Automatic Steel Roll Recoiling Line Sheet Coil Slitting Machine

Name: Uncoiling Automatic Steel Roll Recoiling Line Sheet Coil Slitting Machine
Brand: NKH MACHINERY
Price: 1 USD

China Uncoiling Automatic Steel Roll Recoiling Line Sheet Coil Slitting Machine wholesale

Brand Name : NKH MACHINERY

Model Number : 0.3-1.0mm/1250mm

Certification : CE/SONCAP/CSA

Place of Origin : CHINA

MOQ : 1 UNIT

Price : negotiation

Payment Terms : L/C, D/A, D/P, T/T

Supply Ability : 5 UNITS/MONTH

Delivery Time : 30 WORKING DAYS

Packaging Details : NUDE CARGOES FOR ROLL FORMER WITH CUTTER IN 20/40FT CONTAINER, WOODEN BOX FOR PLC CONTROL CABINET

name : metal sheets slitting line

Raw material : galvanized sheet,Stainless steel,Galvanized Sheet(Customized),PPGI

Width : Max. 1250mm

quantity : 5-10 strips/time

Slitting motor : 3Kw

Thickness : 0.3-1.0mm

Recoiler motor : 5.5Kw

Condition : NEW100%

Contact Now

Uncoiling Automatic Speed Steel Roll Slitting Recoiling Line sheet coil slitting machine coil slitting machine

Quick Detail:

Thickness : 0.4-1.0mm
Material : GI, PPGI, or Stainless steel, Aluminum
Slitting strips: 5-10 strips/time
Line speed : 15meter/min
Material weight : 5-10Mt normally
Coil inner diameter : 508mm
Cutting tolerance : ±1mm

Product Description

The slitting machine is also called vertical slitting line which are used to slit cold rolled steel coil,hot rolled steel coil,galvanized steel coil,silicone steel coil,stainless steel coil,aluminum coils etc into different width according to the user’s production demands and cut as well The smaller metal strips are recoiled at the end of the slitting machine by which these smaller strips are used necessarily for the next process usage in the professional field of making transformers,motors making industry,tube/pipe welding mill industry,cold roll forming industry, ceiling drywall industry and other high-precison equipment making and metal strips making industries. According to the material slitting thickness there are thin plate or board slitting machine,media-thickness plate or board slitting machine and thick plate or board slitting machine. According to the metal materials there are copper strips slitting machine,stainless steel slitting machine,cold or hot rolled plate slitting machine,silicone steel slitting machine.

Uncoiling Automatic Steel Roll Recoiling Line Sheet Coil Slitting Machine

Machine list:

5Tons hydraulic De-coiler
Simple pre-leveling device
Slitting device
Guillotine device
Siemens PLC and IOP/ touch screen, Schneider brand inverter

Description/Technical Parameter details of complete line:

5TX1250mm Hydraulic Un-Coiler with coil car
Simple pre-leveling device
Slitting and Recoiler details as below table :

Suitable roll forming material	Color steel sheet or galvanized steel sheet
Thickness	0.3mm-1.0mm
Coil input width	Max. 1250mm
Carriage Frame design	Wall-plate-frame-design, 18mm thickness
Slitting roller material	Cr12, heat treatment
Slitting strips	5-10 strips/time
Slitting motor	3Kw
Recoiler motor	3Kw
Slitting speed	15-20m/min
Electric Voltage Standard	380V/50Hz/3PH or as the customer's requirements
Major Color of Machine Painted	RAL 5015(Blue) or as per customer’s requirements

PLC Control System

Siemens brand PLC and touch screen,

Schneider/ Shihlin/ Delta brand Inverter, Omron encoder

Cut-to-length tolerance≤±1mm

Control Voltage 24V

Product Rack Un-powered, 3 meter long

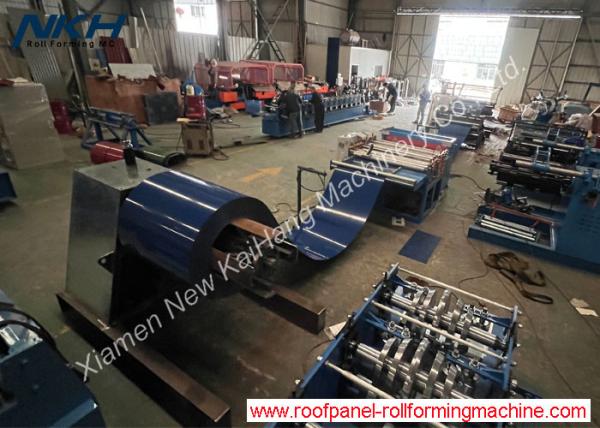

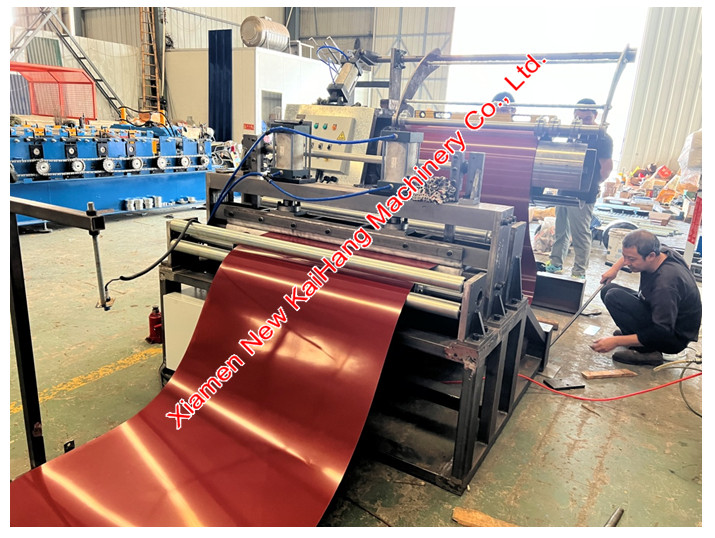

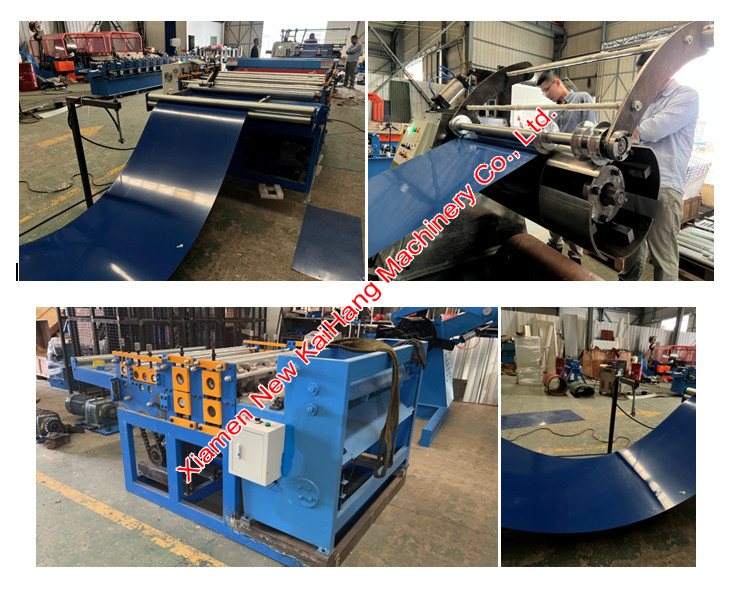

Profile Drawing/Layout/Equipment reference pictures:

Uncoiling Automatic Steel Roll Recoiling Line Sheet Coil Slitting Machine
